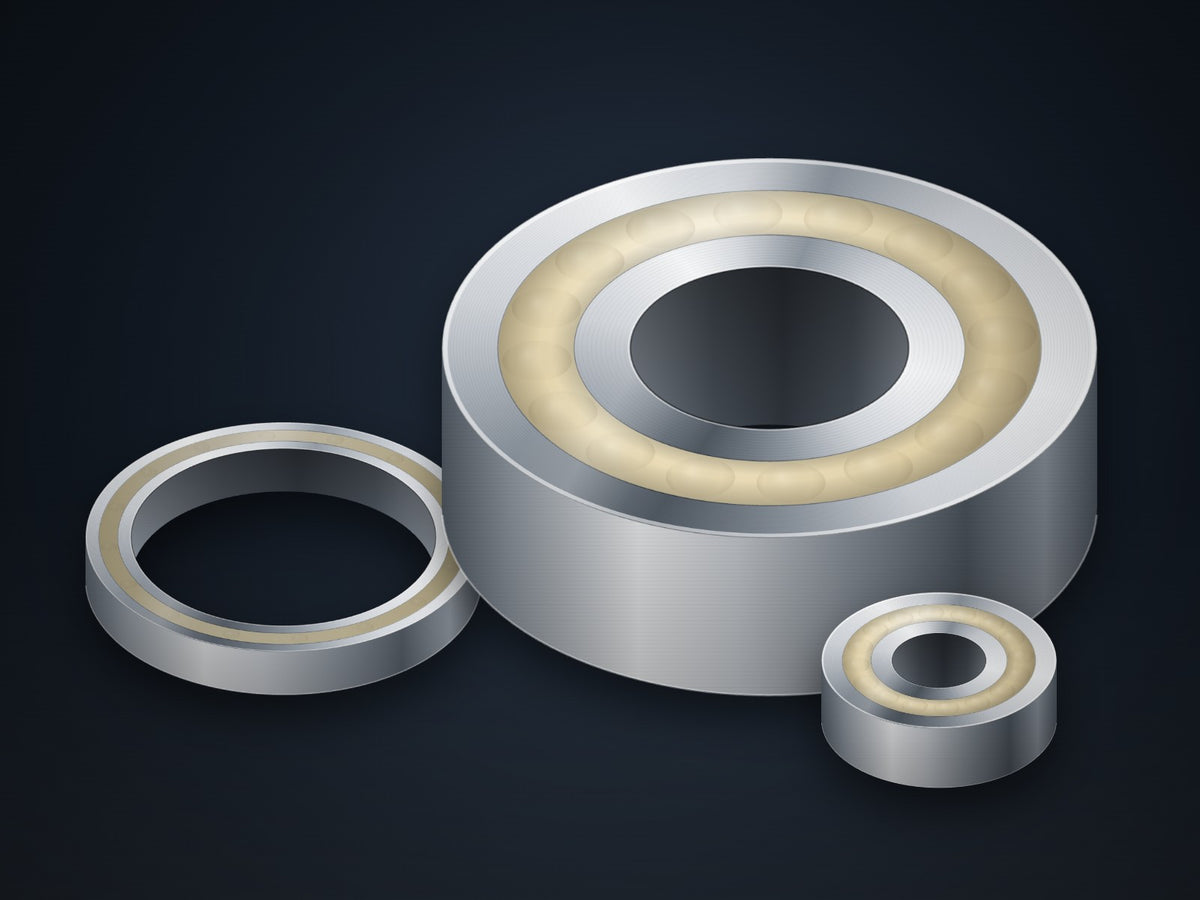

Deep groove ball bearings · 204 sizes · metric and inch

Sealed with solid oil. Nothing to regrease, nothing to wash out.

Standard deep groove ball bearings, filled to order with Syn-Tech solid oil in chrome steel or NSF H1 food grade stainless. No purge, no washout, no grease schedule for the life of the bearing.

Find your bearing See the full catalog
204sizes: 6000 to 6300, thin section, inch and miniature
7 to 10business days, filled to order, no minimum
NSF H1food grade solid oil and stainless steel on every size
Glendale, CAfilled, cured and inspected in house by AMPEC INC
Bearing Finder

Find your size in seconds

Measure bore, outside diameter and width with calipers and type any combination. Fractions are fine for inch sizes.

How to measure a bearing
UNITS

Or browse by series

Full catalog table, all 204 sizes
6000 seriesMetric, light duty, 10 to 110 mm bore 6200 seriesMetric, medium duty, 10 to 110 mm bore 6300 seriesMetric, heavy duty, 10 to 100 mm bore 6700 seriesUltra thin section, 10 to 50 mm bore 6800 seriesThin section, 10 to 100 mm bore 6900 seriesThin section, 10 to 100 mm bore R series, inchR4 to R24, 1/4 to 1-1/2 in bore 1600 series, inchExtended inner ring, 3/16 to 3/4 in bore MiniatureMetric 1 to 9 mm and inch 0.055 to 1/4 in bore
Two grades, same dimensions

Standard or Food Grade

Every size comes both ways. Pick on the product page; the part number tells you which one you have.

Standard chrome steel solid oil bearing
6203-SL

Standard

Chrome steel rings and balls, sealed with Syn-Tech solid oil. The everyday replacement for a greased 2RS or ZZ bearing.

From $16.49 per bearing

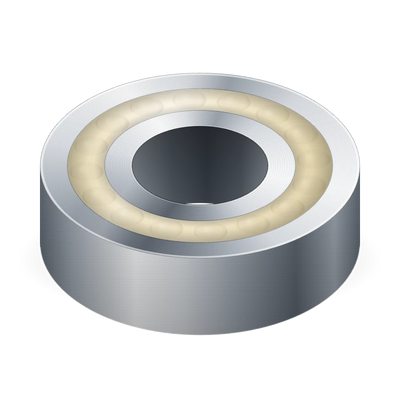

Food grade stainless steel solid oil bearing
S6203-FGSL

Food Grade

Stainless steel rings and balls with NSF H1 registered solid oil, for washdown lines and food and beverage equipment.

From $17.99 per bearing
Why solid oil

Grease leaves. Solid oil stays put.

The space between the rings is filled with a solid polymer that holds the oil and releases a thin film to the balls and raceways as the bearing turns. The fill seals the bearing, so there is nothing to regrease and nothing for washdown to flush out.

No regreasingNo fittings, no schedule, no missed intervals.
No washoutPressure washdown and chemicals cannot flush it.
No purgeNothing drips onto product, belts or floors.
Any orientationThe fill cannot slump, so mount it any way up.
Where they run
  • Food and beverage lines
  • Washdown equipment
  • Conveyors
  • Packaging machinery
  • Marine and wet environments
  • Hard-to-reach motors, fans and pumps
  • Textile and agricultural equipment
  • Robotics and instruments
A note on speed

Solid oil bearings run at a lower maximum speed than greased bearings. For high-speed applications, email us before ordering and we will confirm the fit.

Read the full comparison with greased bearings
How ordering works

Three steps, no minimum order

  1. 01 Find your size Enter bore, outside diameter and width in the Bearing Finder. A 6203 in grease is a 6203 in solid oil; ignore suffixes such as 2RS or ZZ.
  2. 02 Choose the grade Standard SL in chrome steel, or S FGSL in stainless steel with NSF H1 solid oil. Same dimensions either way.
  3. 03 We fill it and ship it Filled to order and shipped in 7 to 10 business days by UPS or USPS within the United States. $10 shipping, free over $100. Tracking by email.

Guides

All guides
2RS

Bearing suffixes explained: 2RS, ZZ, C3, W64 and what they mean for solid oil bearings

What the letters after a bearing number mean, which ones disappear when you switch to solid oil, and how to read a W64 or W64F number.

Read the guide lead time

Ordering solid oil bearings: lead time, shipping and returns

How ordering works: sizing, two grades, the 7 to 10 business day lead time, shipping rates, quantity quotes, purchase orders and returns.

Read the guide inch bearings

Thin section, miniature and inch solid oil bearings: size guide

Where thin section, miniature and inch R and 1600 series solid oil bearings fit, and how to read the size from each part number.

Read the guide

Full catalog

Every size we make, in one table. Click a column to sort, or type in the filter box. Standard = chrome steel with solid oil. Food Grade = stainless steel with NSF H1 food grade solid oil.

Part # ID (bore) OD Width Dimensions Standard (Chrome Steel) Food Grade (Stainless)

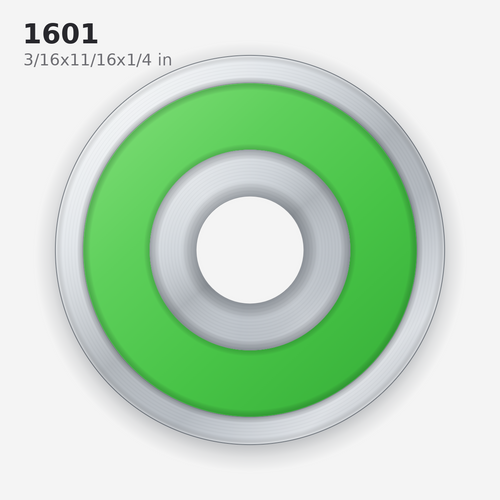

1601 3/16″ 11/16″ 1/4″ 3/16x11/16x1/4 in $18.99 $32.49 View

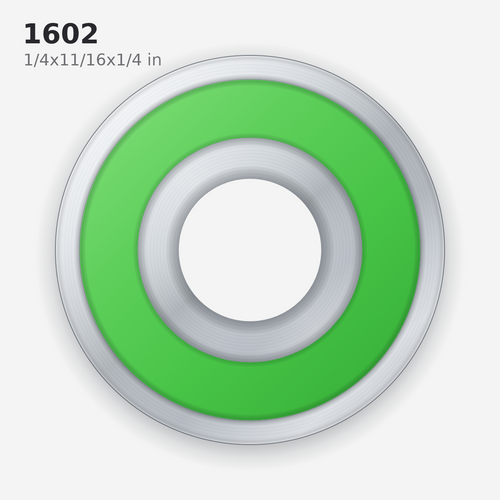

1602 1/4″ 11/16″ 1/4″ 1/4x11/16x1/4 in $18.99 $32.49 View
1603 5/16″ 7/8″ 9/32″ 5/16x7/8x9/32 in $21.49 $36.99 View

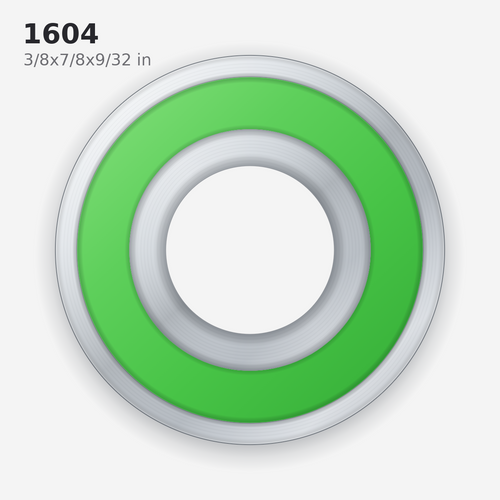

1604 3/8″ 7/8″ 9/32″ 3/8x7/8x9/32 in $21.49 $36.99 View
1605 5/16″ 29/32″ 5/16″ 5/16x29/32x5/16 in $22.49 $38.49 View
1606 3/8″ 29/32″ 5/16″ 3/8x29/32x5/16 in $22.49 $38.49 View
1607 7/16″ 29/32″ 5/16″ 7/16x29/32x5/16 in $22.49 $38.49 View
1614 3/8″ 1-1/8″ 3/8″ 3/8x1-1/8x3/8 in $26.49 $45.49 View
1616 1/2″ 1-1/8″ 3/8″ 1/2x1-1/8x3/8 in $26.49 $45.49 View
1620 7/16″ 1-3/8″ 7/16″ 7/16x1-3/8x7/16 in $32.49 $54.99 View
1621 1/2″ 1-3/8″ 7/16″ 1/2x1-3/8x7/16 in $32.49 $54.99 View
1623 5/8″ 1-3/8″ 7/16″ 5/8x1-3/8x7/16 in $32.49 $54.99 View
1628 5/8″ 1-5/8″ 1/2″ 5/8x1-5/8x1/2 in $38.49 $65.99 View
1630 3/4″ 1-5/8″ 1/2″ 3/4x1-5/8x1/2 in $38.49 $65.99 View
1633 5/8″ 1-3/4″ 1/2″ 5/8x1-3/4x1/2 in $40.99 $69.99 View
1635 3/4″ 1-3/4″ 1/2″ 3/4x1-3/4x1/2 in $40.99 $69.99 View
6000 10 mm 26 mm 8 mm 10×26×8 mm $18.99 $21.49 View
6001 12 mm 28 mm 8 mm 12×28×8 mm $23.49 $30.99 View
6002 15 mm 32 mm 9 mm 15×32×9 mm $24.99 $40.49 View
6003 17 mm 35 mm 10 mm 17×35×10 mm $25.49 $45.99 View
6004 20 mm 42 mm 12 mm 20×42×12 mm $21.99 $57.49 View
6005 25 mm 47 mm 12 mm 25×47×12 mm $27.49 $77.49 View
6006 30 mm 55 mm 13 mm 30×55×13 mm $63.49 $93.99 View
6007 35 mm 62 mm 14 mm 35×62×14 mm $65.99 $98.49 View
6008 40 mm 68 mm 15 mm 40×68×15 mm $74.49 $113.49 View
6009 45 mm 75 mm 16 mm 45×75×16 mm $93.49 $175.49 View
6010 50 mm 80 mm 16 mm 50×80×16 mm $85.49 $213.99 View
6011 55 mm 90 mm 18 mm 55×90×18 mm $121.99 $162.99 View
6012 60 mm 95 mm 18 mm 60×95×18 mm $124.99 $172.49 View
6013 65 mm 100 mm 18 mm 65×100×18 mm $139.99 $182.49 View
6014 70 mm 110 mm 20 mm 70×110×20 mm $148.99 $213.99 View
6015 75 mm 115 mm 20 mm 75×115×20 mm $157.99 $224.99 View
6016 80 mm 125 mm 22 mm 80×125×22 mm $258.99 $260.49 View
6017 85 mm 130 mm 22 mm 85×130×22 mm $271.99 $271.99 View
6018 90 mm 140 mm 24 mm 90×140×24 mm $212.49 $310.99 View
6019 95 mm 145 mm 24 mm 95×145×24 mm $221.49 $323.99 View
602 2 mm 7 mm 2.8 mm 2×7×2.8 mm $19.99 $21.99 View
6020 100 mm 150 mm 24 mm 100×150×24 mm $229.99 $336.49 View
6021 105 mm 160 mm 26 mm 105×160×26 mm $259.49 $379.99 View
6022 110 mm 170 mm 28 mm 110×170×28 mm $290.49 $425.49 View
603 3 mm 9 mm 3 mm 3×9×3 mm $20.99 $22.99 View
604 4 mm 12 mm 4 mm 4×12×4 mm $22.49 $24.49 View
605 5 mm 14 mm 5 mm 5×14×5 mm $23.99 $25.99 View
606 6 mm 17 mm 6 mm 6×17×6 mm $25.99 $27.49 View
607 7 mm 19 mm 6 mm 7×19×6 mm $29.99 $29.99 View
608 8 mm 22 mm 7 mm 8×22×7 mm $29.99 $33.49 View
609 9 mm 24 mm 7 mm 9×24×7 mm $31.49 $40.49 View
6200 10 mm 30 mm 9 mm 10×30×9 mm $20.99 $21.99 View
6201 12 mm 32 mm 10 mm 12×32×10 mm $22.99 $32.99 View
6202 15 mm 35 mm 11 mm 15×35×11 mm $20.49 $40.99 View
6203 17 mm 40 mm 12 mm 17×40×12 mm $18.49 $48.99 View
6204 20 mm 47 mm 14 mm 20×47×14 mm $23.99 $59.49 View
6205 25 mm 52 mm 15 mm 25×52×15 mm $24.99 $78.49 View
6206 30 mm 62 mm 16 mm 30×62×16 mm $41.99 $100.49 View
6207 35 mm 72 mm 17 mm 35×72×17 mm $72.99 $102.99 View
6208 40 mm 80 mm 18 mm 40×80×18 mm $75.49 $117.99 View
6209 45 mm 85 mm 19 mm 45×85×19 mm $83.99 $182.49 View
6210 50 mm 90 mm 20 mm 50×90×20 mm $85.49 $213.99 View
6211 55 mm 100 mm 21 mm 55×100×21 mm $128.49 $162.49 View
6212 60 mm 110 mm 22 mm 60×110×22 mm $146.49 $185.49 View
6213 65 mm 120 mm 23 mm 65×120×23 mm $117.49 $209.49 View
6214 70 mm 125 mm 24 mm 70×125×24 mm $125.99 $224.49 View
6215 75 mm 130 mm 25 mm 75×130×25 mm $134.49 $240.49 View
6216 80 mm 140 mm 26 mm 80×140×26 mm $149.99 $267.49 View
6217 85 mm 150 mm 28 mm 85×150×28 mm $169.49 $301.99 View
6218 90 mm 160 mm 30 mm 90×160×30 mm $189.99 $338.99 View
6219 95 mm 170 mm 32 mm 95×170×32 mm $211.99 $377.49 View
6220 100 mm 180 mm 34 mm 100×180×34 mm $234.99 $418.49 View
6221 105 mm 190 mm 36 mm 105×190×36 mm $258.99 $461.49 View
6222 110 mm 200 mm 38 mm 110×200×38 mm $283.99 $505.99 View
623 3 mm 10 mm 4 mm 3×10×4 mm $21.49 $22.49 View
624 4 mm 13 mm 5 mm 4×13×5 mm $23.49 $25.49 View
625 5 mm 16 mm 5 mm 5×16×5 mm $24.99 $25.99 View
626 6 mm 19 mm 6 mm 6×19×6 mm $27.49 $27.49 View
627 7 mm 22 mm 7 mm 7×22×7 mm $29.99 $29.99 View
628 8 mm 24 mm 8 mm 8×24×8 mm $32.49 $33.49 View
629 9 mm 26 mm 8 mm 9×26×8 mm $30.49 $40.99 View
6300 10 mm 35 mm 11 mm 10×35×11 mm $40.49 $40.49 View
6301 12 mm 37 mm 12 mm 12×37×12 mm $34.99 $50.99 View
6302 15 mm 42 mm 13 mm 15×42×13 mm $42.99 $64.49 View
6303 17 mm 47 mm 14 mm 17×47×14 mm $43.99 $73.49 View
6304 20 mm 52 mm 15 mm 20×52×15 mm $44.49 $100.49 View
6305 25 mm 62 mm 17 mm 25×62×17 mm $45.99 $117.49 View
6306 30 mm 72 mm 19 mm 30×72×19 mm $47.99 $126.99 View
6307 35 mm 80 mm 21 mm 35×80×21 mm $50.49 $149.49 View
6308 40 mm 90 mm 23 mm 40×90×23 mm $59.49 $177.99 View
6309 45 mm 100 mm 25 mm 45×100×25 mm $89.49 $208.99 View
6310 50 mm 110 mm 27 mm 50×110×27 mm $115.99 $242.49 View
6311 55 mm 120 mm 29 mm 55×120×29 mm $142.49 $278.49 View
6312 60 mm 130 mm 31 mm 60×130×31 mm $164.49 $316.99 View
6313 65 mm 140 mm 33 mm 65×140×33 mm $182.99 $357.99 View
6314 70 mm 150 mm 35 mm 70×150×35 mm $204.99 $400.99 View
6315 75 mm 160 mm 37 mm 75×160×37 mm $228.49 $446.49 View
6316 80 mm 170 mm 39 mm 80×170×39 mm $252.99 $494.49 View
6317 85 mm 180 mm 41 mm 85×180×41 mm $278.99 $544.99 View
6318 90 mm 190 mm 43 mm 90×190×43 mm $305.99 $597.99 View
6319 95 mm 200 mm 45 mm 95×200×45 mm $333.99 $652.49 View
6320 100 mm 215 mm 47 mm 100×215×47 mm $373.49 $729.99 View
633 3 mm 13 mm 5 mm 3×13×5 mm $23.49 $23.99 View
634 4 mm 16 mm 5 mm 4×16×5 mm $24.49 $24.49 View
635 5 mm 19 mm 6 mm 5×19×6 mm $25.99 $25.99 View
636 6 mm 22 mm 7 mm 6×22×7 mm $29.99 $29.99 View
637 7 mm 26 mm 9 mm 7×26×9 mm $34.49 $34.49 View
638 8 mm 28 mm 9 mm 8×28×9 mm $36.49 $37.99 View
639 9 mm 30 mm 10 mm 9×30×10 mm $38.99 $38.99 View
6700 10 mm 15 mm 4 mm 10×15×4 mm $16.99 $23.49 View
6701 12 mm 18 mm 4 mm 12×18×4 mm $17.49 $23.99 View
6702 15 mm 21 mm 4 mm 15×21×4 mm $18.49 $30.49 View
6703 17 mm 23 mm 4 mm 17×23×4 mm $19.49 $33.49 View
6704 20 mm 27 mm 4 mm 20×27×4 mm $20.49 $43.99 View
6705 25 mm 32 mm 4 mm 25×32×4 mm $22.49 $57.49 View
6706 30 mm 37 mm 4 mm 30×37×4 mm $23.99 $74.49 View
6707 35 mm 44 mm 5 mm 35×44×5 mm $28.49 $80.99 View
6708 40 mm 50 mm 6 mm 40×50×6 mm $33.49 $153.49 View
6709 45 mm 55 mm 6 mm 45×55×6 mm $35.99 $76.49 View
6710 50 mm 62 mm 6 mm 50×62×6 mm $39.49 $83.99 View
673 3 mm 6 mm 2 mm 3×6×2 mm $19.49 $21.49 View
674 4 mm 7 mm 2 mm 4×7×2 mm $19.99 $21.99 View
675 5 mm 8 mm 2 mm 5×8×2 mm $19.99 $21.99 View
676 6 mm 10 mm 3 mm 6×10×3 mm $20.99 $22.99 View
677 7 mm 11 mm 3 mm 7×11×3 mm $21.49 $23.49 View
678 8 mm 12 mm 3.5 mm 8×12×3.5 mm $21.99 $24.49 View
679 9 mm 14 mm 3.5 mm 9×14×3.5 mm $22.99 $42.99 View
6800 10 mm 19 mm 5 mm 10×19×5 mm $22.49 $22.49 View
6801 12 mm 21 mm 5 mm 12×21×5 mm $25.99 $25.99 View
6802 15 mm 24 mm 5 mm 15×24×5 mm $32.99 $32.99 View
6803 17 mm 26 mm 5 mm 17×26×5 mm $39.49 $41.99 View
6804 20 mm 32 mm 7 mm 20×32×7 mm $40.99 $45.99 View
6805 25 mm 37 mm 7 mm 25×37×7 mm $40.99 $69.49 View
6806 30 mm 42 mm 7 mm 30×42×7 mm $41.99 $79.49 View
6807 35 mm 47 mm 7 mm 35×47×7 mm $54.49 $83.99 View
6808 40 mm 52 mm 7 mm 40×52×7 mm $58.99 $93.99 View
6809 45 mm 58 mm 7 mm 45×58×7 mm $64.49 $148.99 View
681 1 mm 3 mm 1 mm 1×3×1 mm $18.99 $22.99 View
6810 50 mm 65 mm 7 mm 50×65×7 mm $70.49 $180.49 View
6811 55 mm 72 mm 9 mm 55×72×9 mm $86.49 $130.99 View
6812 60 mm 78 mm 10 mm 60×78×10 mm $98.49 $148.49 View
6813 65 mm 85 mm 10 mm 65×85×10 mm $106.99 $160.99 View
6814 70 mm 90 mm 10 mm 70×90×10 mm $112.99 $170.49 View
6815 75 mm 95 mm 10 mm 75×95×10 mm $119.49 $179.99 View
6816 80 mm 100 mm 10 mm 80×100×10 mm $125.99 $189.99 View
6817 85 mm 110 mm 13 mm 85×110×13 mm $159.49 $240.49 View
6818 90 mm 115 mm 13 mm 90×115×13 mm $167.49 $251.99 View
6819 95 mm 120 mm 13 mm 95×120×13 mm $174.99 $263.99 View
682 2 mm 5 mm 1.5 mm 2×5×1.5 mm $19.49 $23.49 View
6820 100 mm 125 mm 13 mm 100×125×13 mm $182.99 $275.99 View
683 3 mm 7 mm 2 mm 3×7×2 mm $19.99 $23.49 View
684 4 mm 9 mm 2.5 mm 4×9×2.5 mm $20.49 $24.99 View
685 5 mm 11 mm 3 mm 5×11×3 mm $21.49 $25.49 View
686 6 mm 13 mm 3.5 mm 6×13×3.5 mm $22.49 $26.49 View
687 7 mm 14 mm 3.5 mm 7×14×3.5 mm $22.99 $28.99 View
688 8 mm 16 mm 4 mm 8×16×4 mm $23.99 $30.99 View
689 9 mm 17 mm 4 mm 9×17×4 mm $24.49 $39.99 View
6900 10 mm 22 mm 6 mm 10×22×6 mm $21.49 $21.49 View
6901 12 mm 24 mm 6 mm 12×24×6 mm $28.49 $28.49 View
6902 15 mm 28 mm 7 mm 15×28×7 mm $32.49 $35.99 View
6903 17 mm 30 mm 7 mm 17×30×7 mm $38.99 $40.99 View
6904 20 mm 37 mm 9 mm 20×37×9 mm $47.99 $49.99 View
6905 25 mm 42 mm 9 mm 25×42×9 mm $42.49 $69.99 View
6906 30 mm 47 mm 9 mm 30×47×9 mm $70.99 $89.49 View
6907 35 mm 55 mm 10 mm 35×55×10 mm $71.99 $91.49 View
6908 40 mm 62 mm 12 mm 40×62×12 mm $74.49 $105.99 View
6909 45 mm 68 mm 12 mm 45×68×12 mm $89.99 $163.49 View
691 1 mm 4 mm 1.6 mm 1×4×1.6 mm $18.99 $21.99 View
6910 50 mm 72 mm 12 mm 50×72×12 mm $94.99 $183.49 View
6911 55 mm 80 mm 13 mm 55×80×13 mm $109.49 $140.99 View
6912 60 mm 85 mm 13 mm 60×85×13 mm $116.49 $149.99 View
6913 65 mm 90 mm 13 mm 65×90×13 mm $123.49 $158.99 View
6914 70 mm 100 mm 16 mm 70×100×16 mm $153.49 $197.99 View
6915 75 mm 105 mm 16 mm 75×105×16 mm $161.99 $208.99 View
6916 80 mm 110 mm 16 mm 80×110×16 mm $170.49 $219.49 View
6917 85 mm 120 mm 18 mm 85×120×18 mm $199.99 $257.49 View
6918 90 mm 125 mm 18 mm 90×125×18 mm $208.99 $269.49 View
6919 95 mm 130 mm 18 mm 95×130×18 mm $218.49 $281.49 View
692 2 mm 6 mm 2.3 mm 2×6×2.3 mm $19.99 $22.49 View
6920 100 mm 140 mm 20 mm 100×140×20 mm $251.99 $324.49 View
693 3 mm 8 mm 2.5 mm 3×8×2.5 mm $20.49 $22.99 View
694 4 mm 11 mm 4 mm 4×11×4 mm $21.99 $24.99 View
695 5 mm 13 mm 4 mm 5×13×4 mm $22.99 $25.99 View
696 6 mm 15 mm 5 mm 6×15×5 mm $24.49 $26.99 View
697 7 mm 17 mm 5 mm 7×17×5 mm $25.49 $30.49 View
698 8 mm 19 mm 6 mm 8×19×6 mm $27.49 $33.49 View
699 9 mm 20 mm 6 mm 9×20×6 mm $27.99 $39.49 View
R1 0.055″ 3/16″ 7/64″ 0.055x3/16x7/64 in $19.49 $21.49 View
R1-4 5/64″ 1/4″ 9/64″ 5/64x1/4x9/64 in $19.99 $21.99 View
R1-5 3/32″ 5/16″ 9/64″ 3/32x5/16x9/64 in $20.99 $22.99 View
R10 5/8″ 1-3/8″ 11/32″ 5/8×1-3/8×11/32 in $19.49 $32.49 View
R12 3/4″ 1-5/8″ 7/16″ 3/4×1-5/8×7/16 in $25.49 $43.99 View
R133 3/32″ 3/16″ 3/32″ 3/32x3/16x3/32 in $19.49 $21.49 View
R14 7/8″ 1-7/8″ 1/2″ 7/8×1-7/8×1/2 in $35.49 $60.49 View
R144 1/8″ 1/4″ 7/64″ 1/8x1/4x7/64 in $19.99 $21.99 View
R155 5/32″ 5/16″ 1/8″ 5/32x5/16x1/8 in $20.49 $22.49 View
R16 1″ 2″ 1/2″ 1×2×1/2 in $30.49 $83.99 View
R166 3/16″ 3/8″ 1/8″ 3/16x3/8x1/8 in $20.99 $22.99 View
R18 1-1/8″ 2-1/8″ 1/2″ 1-1/8x2-1/8x1/2 in $33.99 $54.99 View
R188 1/4″ 1/2″ 3/16″ 1/4×1/2×3/16 in $22.99 $25.49 View
R2 1/8″ 3/8″ 5/32″ 1/8×3/8×5/32 in $21.49 $25.49 View
R20 1-1/4″ 2-1/4″ 1/2″ 1-1/4x2-1/4x1/2 in $35.99 $57.49 View
R22 1-3/8″ 2-1/2″ 9/16″ 1-3/8x2-1/2x9/16 in $41.49 $67.49 View
R24 1-1/2″ 2-5/8″ 9/16″ 1-1/2x2-5/8x9/16 in $43.49 $70.49 View
R3 3/16″ 1/2″ 0.196″ 3/16x1/2x0.196 in $18.99 $20.99 View
R4 1/4″ 5/8″ 0.196″ 1/4×5/8×0.196 in $18.49 $18.99 View
R6 3/8″ 7/8″ 9/32″ 3/8×7/8×9/32 in $16.49 $17.99 View
R8 1/2″ 1-1/8″ 5/16″ 1/2×1-1/8×5/16 in $17.49 $28.49 View
